Stone Industry

In the Stone Industry there are several process and we can summarize them in a brief list of applications. We begin with the extraction of the stone from the Quarry. The extraction can be done in different ways, with the diamond wire, with the chain saw or in some cases with drilling.

Then the extracted block must be squared in order to facilitate an easy trasportation in the workshops for the next working phases. During this phase the block is processed with machines such as the Stationary machines.

When the block is squared it needs to be cut to obtain single slabs; if it is marble it will be cut using a frame saw machine or, if it is granite, a multiwire machine.

Some other applications request profiled blocks for architectural desing or other unconventional shapes. In this case a profiling machine is used to obtain special designs such as shells for column coating.


Extraction of the stone in the Quarry



The extraction can be done in different ways, with the diamond wire or with the chain saw or in some cases with drilling machines.

There are many kind of quarries, up in the mountain, open cast quarries, pit quarries or gallery quarries, but in all af them a good equipment can reduce the workign time and increase the safety level.

Our diamond wires are the faster you can find in the market and the attention for all quality aspects are a guarantee of the maximum safety you can have.

Our sintered or electroplated diamond wires are produced selecting high quality raw materials and a constant and careful control assures the highest quality product you've ever seen.

BCO-B (Double Cone Shape) Electroplated dw for Marble Quarry

Electroplated beads ø11mm and 10,6mm diamond lenght USMesh 25/30 - 28 BPM

The new BCO diamond bead designed by Diamond Pauber and its special Double Cone shape increases the cutting speed to an extraordinary value and extends the life to the maximum respect all other electroplated diamond beads.

It's applied in Marble and Calcareous Quarries. It is manufactured with 28 BPM ø11mm and 10,6mm of lenght and with USMesh 25/30 (FEPA D711) diamond grit.The special Double Cone shape, is able to cut 18 m2/h with a production of 80 m2 each linear meter.

The BCO-B diamond wire is assembled in TA-Traditional Assembly with springs, spacers and clamps, or in the most advanced GA-Polymeric Coated Assembly. The TA is more efficient in all dry cut condition, but GA is more secure and it is used to respect the new safety laws.

Z90-A Electroplated dw for Marble Quarry

Electroplated beads ø10.0mm and 5,7mm diamond lenght USMesh 40/50 - 27÷30 BPM

Z90 is one of the most used electroplated diamond wire in Marble and Calcareous Quarries. It is manufactured with 27÷30 BPM ,5,7mm of lenght and with USMesh 40/50 (FEPA D426) diamond grit.

This diamond wire, with a cylindrical shape, is able to cut 15÷18 m2/h with a production of 50 m2 each linear meter.

Z91-B Electroplated dw for Marble Quarry

Electroplated beads ø10.0mm and 7mm diamond length UsMesh 40/50 - 27÷30 BPM

Z91-B is one of the most used electroplated diamond wire in Marble and Calcareous Quarries. It is manufactured with 27÷ 28 BPM; 7,0mm of lenght and with USMesh 25/30 (FEPA D711) diamond grit.

This diamond wire, with a cylindrical shape, is able to cut 15÷18 m2/h with a production of 50 m2 each linear meter.

For this kind of diamond wire it is necessary to have an high power machine with at least 75 Hp

MRS Sintered dw for Marble Quarry

Sintered beads ø10.5mm and 6mm diamond length USMesh 40/50 - 27÷28 BPM

MRS is a sintered diamond wire used in Marble and Calcareous Quarries. It is manufactured with 27÷28 BPM;

6,0mm of lenght and with USMesh 40/50 (FEPA D711) diamond grit.

This diamond wire, with a cylindrical shape, is able to cut 12÷14 m2/h with a production of 60 m2 each linear meter.

For this kind of diamond wire it is necessary to have an high power machine with at least 75 Hp

GRV Sintered dw for Granite Quarry

Sintered beads ø11.0mm and 6mm diamond length USMesh 40/50 - 34÷36 BPM

GRV is a sintered diamond wire used in Granite and Hard Stones quarries. It is manufactured with 34÷36 BPM;

6,0mm of lenght and ø11,00mm.

This diamond wire, with a cylindrical shape, is able to cut 5 ÷9 m2/h with a production of 40 m2 each linear meter.

For this kind of diamond wire it is necessary to have an high power machine with at least 75 Hp

Please reload


Block Squaring



After the extraction the block needs to be "squared" for transportation or to be cut in the Gang Saw Blade Machine.

There are two different machines capable of making this process; a standard quarry machine or a more stable and more efficient Stationary Machine.

LSR-A Squaring for Marble and Limestones

Electroplated beads ø10.0mm and ø8,4mm - Tapered Shape - USMesh 40/50 - 28÷30 BPM

LSR-A is the most resistant diamond wire for this application. Thanks to its tapered beads this diamond wire provides a good cutting speed. This diamond wires is the most suitable for hard marble and hard limestone.

It is manufactured in two different sizes, ø 10,0mm and ø 8,4mm

LSR-B Squaring DW for Marble, Limestone and Sandstone

Electroplated beads Ø10,8mm and ø9,2mm - Tapered Shape - USMesh 25/30 - 28÷30 BPM

LSR-B is the fastest diamond wire for this application. The beads are produced with a big diamond grid (UsMesh 25/30). The tapered shaped beads guarantee a fast cut togther with a long life.

It is manufactured in two different sizes;10,8mm and 9,2mm

GRG Squaring DW for Granite and Hard Stone

Sintered beads ø11,0mm and ø8,5mm and 6mm diamond length - 34÷38 BPM

GRG is a sintered diamond wire with ø11mm and ø8,5mm beads. This diamond wire doesn't neet to be sharpened,It's an extremely fast tool capable of perfoming a quick cut on granite and hard stone.



Please reload


Profiling - You can have the desired shape



Trought this process you can obtain the desired shape from the block, you can create curved slabs like shells for columns or other architectural shapes.

At this stage it is very important to use a very sharp diamond wire in order to not lose the allignement of the wire with the cut and maintan the correct desired shape.

Another very important aspect is to use a resistant diamond wire in order to and avoid breakages and the consequential loss of time during the cut.

LSR-A Profiling DW for Marble and Calcareous

Electroplated beads ø8,5mm and ø6,9mm - Tapered Shape - USMesh 40/50 - 28÷30 BPM

LSR-A is a highly resistant diamond wire for profiling applications. The beads are electroplated with UsMesh 40/50 diamond size. The beads shape is "Tapered" to perfrom a fast cut and give a long life

It is manufatured in two different sizes: 8,5mm and 6,9mm, usually it is assembled with 28÷30 beads per meter.



LSR-B Profiling DW for Marble and Calcareous

Electroplated beads ø9,4mm and ø7,8mm - Tapered Shape - USMesh 25/30 - 28÷30 BPM

LSR-B is the fastest diamond wire for profiling. The beads are electroplated with a big size diamond (UsMesh 25/30). The beads shape is "Tapered" to perfrom a fast cut and give a long life.

It is manufacturd in two different sizes: 8,5mm and 6,9mm, usually it is assembled with 28÷30 beads per meter.

VIP-A Profiling DW for Marble and Calcareous

Electroplated beads ø6,2mm - Cylindrical Shape - USMesh 40/50 - 30÷32 BPM

VIP-A is the thinner diamond wire for profiling, it's ø6,2mm. The beads are electroplated with a UsMesh 40/50 diamond . The beads shape is "Cylindrical" in order to have a balanced cutting action.

Normally it's assembled with 30÷32 beads per meter.

DIS - Profiling DW for Marble and Calcareous

Sintered beads ø6,9mm - 28÷32 BPM

DIS is a sintered diamond wire for profiling, its ø 6,9mm. The beads shape is cylindrical and can provide a longer life, usually it's assembled with 28÷32 beads per meter.

This diamond wire is manufactured using the DIM® Technology (Patented).

DIV - Profiling DW for Granite and Hard Stone

Sintered beads ø6,9mm - 34÷36 BPM

DIV is a sintered diamond wire for profiling, its ø 6,9mm. The beads shape is cylindrical and can provide a longer life, usually it's assembled with 34÷36 beads per meter.

This diamond wire is manufactured using the DIM® Technology (Patented).



Please reload

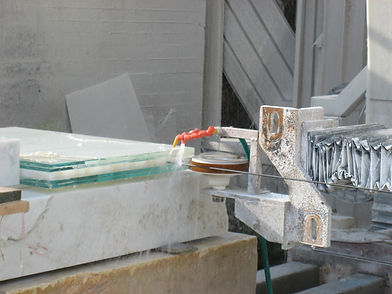

When the slabs are used to cover a skyscrapers facade, a lift's interior or to decorate a yatch you can use a splitting machine to reduce the weight of the slab.
A ligth and resistant material is attached on both sides of the slab and a diamond wire splits the slab in two. Each new slab is ligther and can be used for these special works.

Splitting - You can reduce the slabs weight

.

VIP-A Splitting machine DW for Marble and Calcareus

Electroplate beads ø6,2mm - Cylindrical shape - USMesh 40/50 - 30÷32 BPM

VIP-A is a well balanced diamond wire able to make cuts with the splitting machine. It's an electroplated wire with ø6,2mm cylindrical beads. Normally It's assembled with 30 beads per meter. The internal steel rope is ø 3,5mm

BRN-A Splitting machine DW for Marble and Calcareus

Electroplate beads ø5,2mm -Cylindrical shape - USMesh 40/50 - 30÷32 BPM

BRN-A is the thinner diamond wire able to make cuts with the splitting machine. It's an electroplated wire with ø5,2mm cylindrical beads. Normally It's assembled with 30 beads per meter. The internal steel rope is ø 3,2mm

Please reload


Multiwire - To cut slabs of Granite



This new application for stone and granite replaces the old frame grit machines allowing to reduce the long processing times. The advanteges that are obtained are speed, flexibility and energy savings.

Diamond Pauber has developed various typees of wire for this machine and the most significant is the TWIST® diamond wire.

The Twist diamond beads are monolithic and produced using only Cobalt and Diamond.

Twist ø7,3 Granite Multiwire

Monolithic Beads ø7,3mm 8mm long - 30÷32 BPM

Twist is a ø7,3mm new patented diamond wire for multiwire machine manufactured using  the new DIM® technology. The beads are monolothic and without the metal shaft inside, for this reason the cutting life is longer than the traditional.

Usually it s assembled with 30÷32 beads per meter, the SHX assembly protects the steel rope and reduces the breakages.



Twist ø6,3 Granite Multiwire

Monolithic Beads ø6,3mm 8mm long - 30÷32 BPM

Twist is a ø6,3mm new patented diamond wire for multiwire machine manufactured using the new DIM® technilogy. The beads are monolothic and without the metal shaft inside so the cutting life is longer than the traditional.

Usually it is assembled with 30÷32 beads per meter, the SHX assembly  protects the steel rope and reduces the breakages.



Please reload

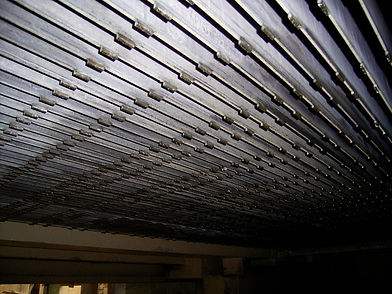

Gang Saw Blades for Marble slabs



This is the traditional process to obtain slabs from a block of marble, limestone or calcareous stone.

Diamond Pauber has created different types of diamond segments from the traditional graphite sintered to the most modern and efficient  made with DIM® technology (Diamond Injection Moulding).

The diamond segments can be mouted on normal steel carbon of 2,5mm 3,0mm and 3,5mm or on the special stainless steel to avoid staining the material with rust.

We also produce different segments for the Chinese market where steel thickness is 1,8 and 2,0mm.

Gang Saw Blades - Carbon Steel

Carbon Steel - Tick. 3,0÷3,5mm - Segments H8 or H10

This tipe of gang saw blades are assembled with the DIM® diamond segments. We can provide different steel tichnesses. The gang saw blades are assembled on Carbon Steel (2,5mm - 3,0mm or 3,5mm)
